New air diffuser: greater performance, lower consumption
DESCRIPTION

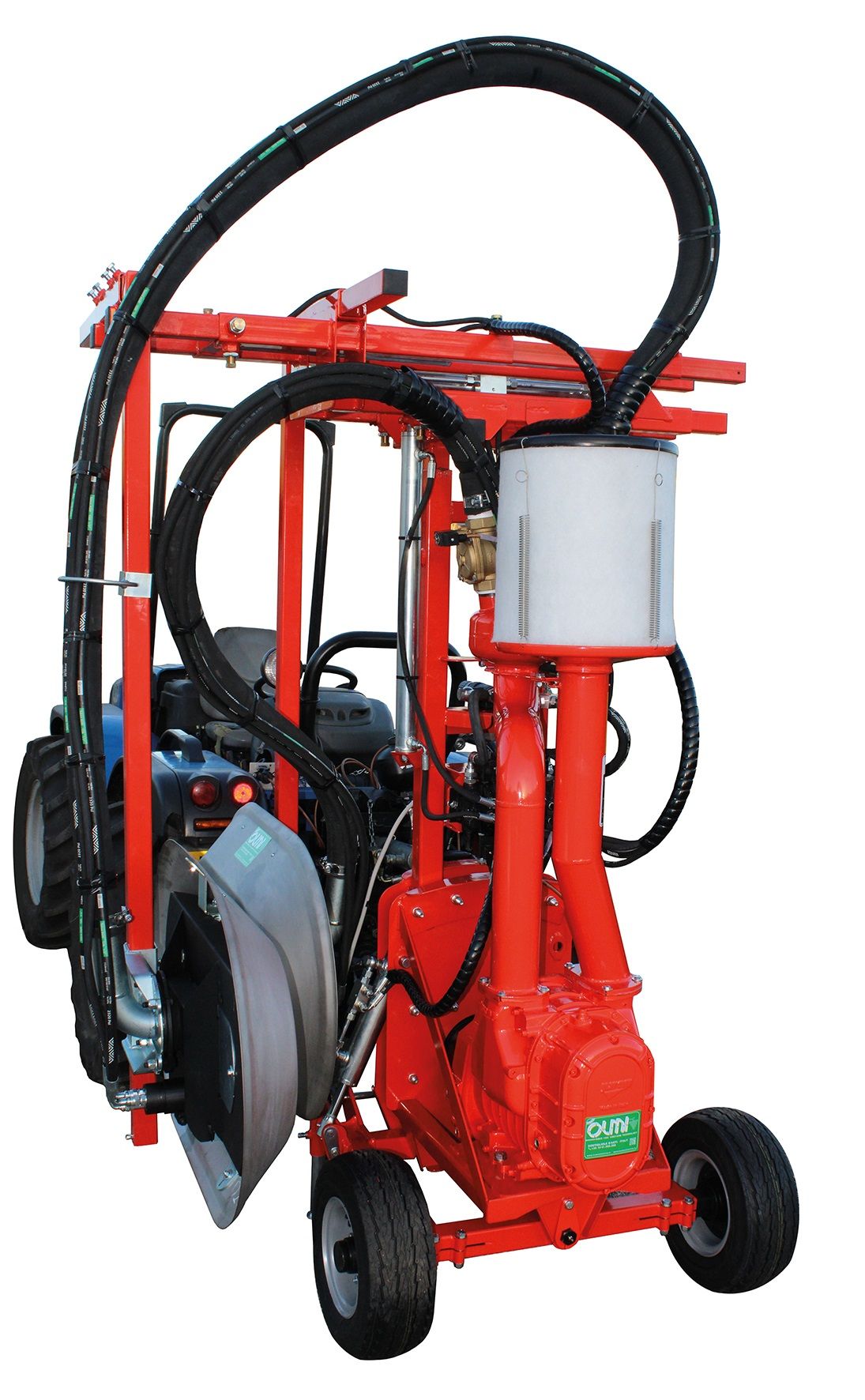

Hind over row pneumatic deleafer, with 2 blowing heads, work on one complete row, 4 hydraulic movements, with electro-hydraulic joystick, leaning wheels, cardan, mounted on the back of the tractor on the 3-point hitching. Usable also with only one head, excluding the second one. Usable also with crawler tractors.
Reduced dimensions, ideal for hillside vineyards: mm 1000 x 1000 x height 2200
TECHNICAL FEATURES
Min. required tractor power | 80 HP |
---|---|
PTO | 540 or 750 rpm based on the use of one or two heads |
Weight | 600 Kg |
Working speed | from 4 to 6 Km/h depending on the working conditions |
Working pressure | from 0,5 to 0,9 bar (adjustable with tractor’s PTO) |
FUNCTIONING
The air produced by a compressor reaches the rotors, hits the leaves in the surrounding grape’s area in the whole deepness. A selective defoliation in the fruiting zone is obtained.
ADVANTAGES

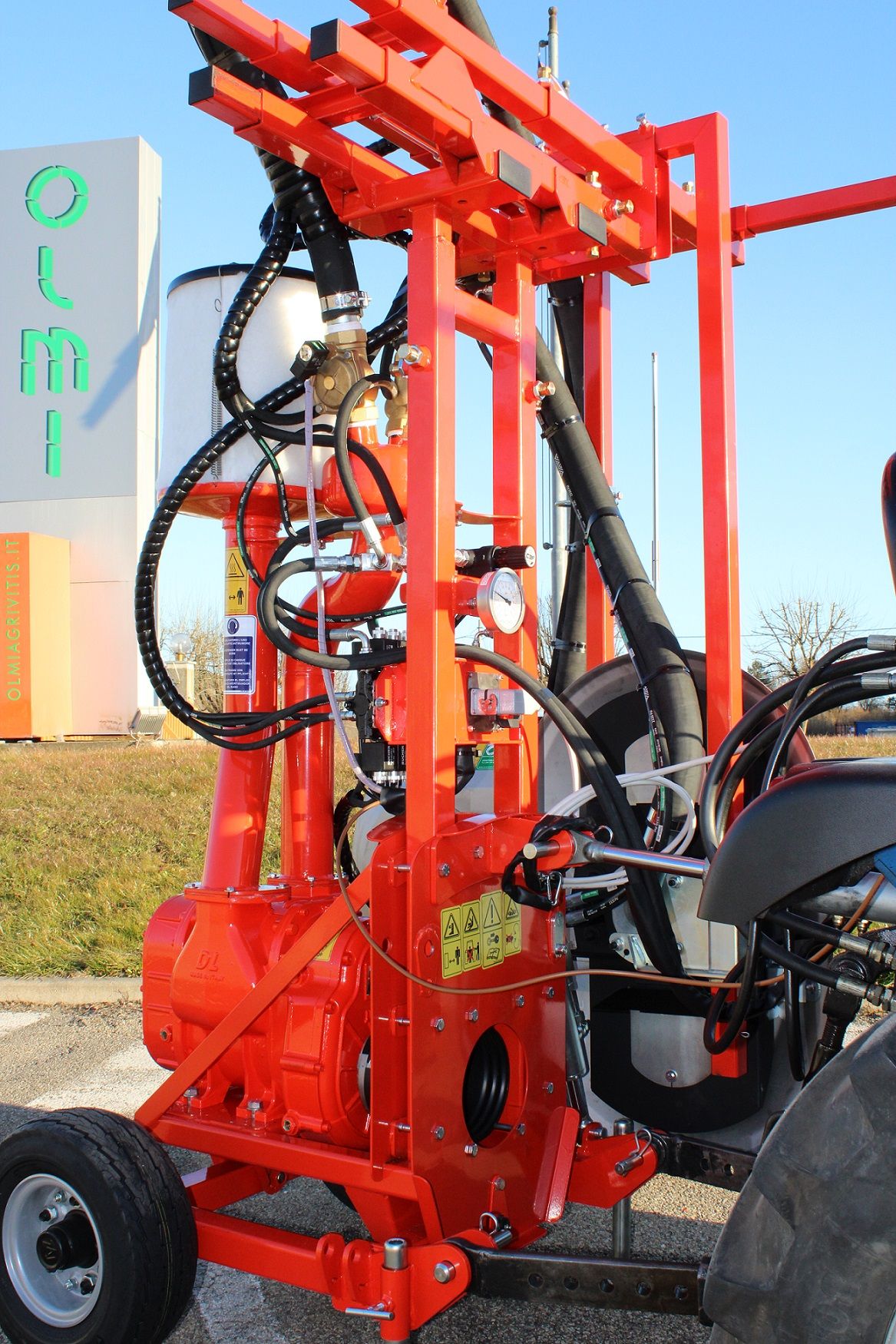

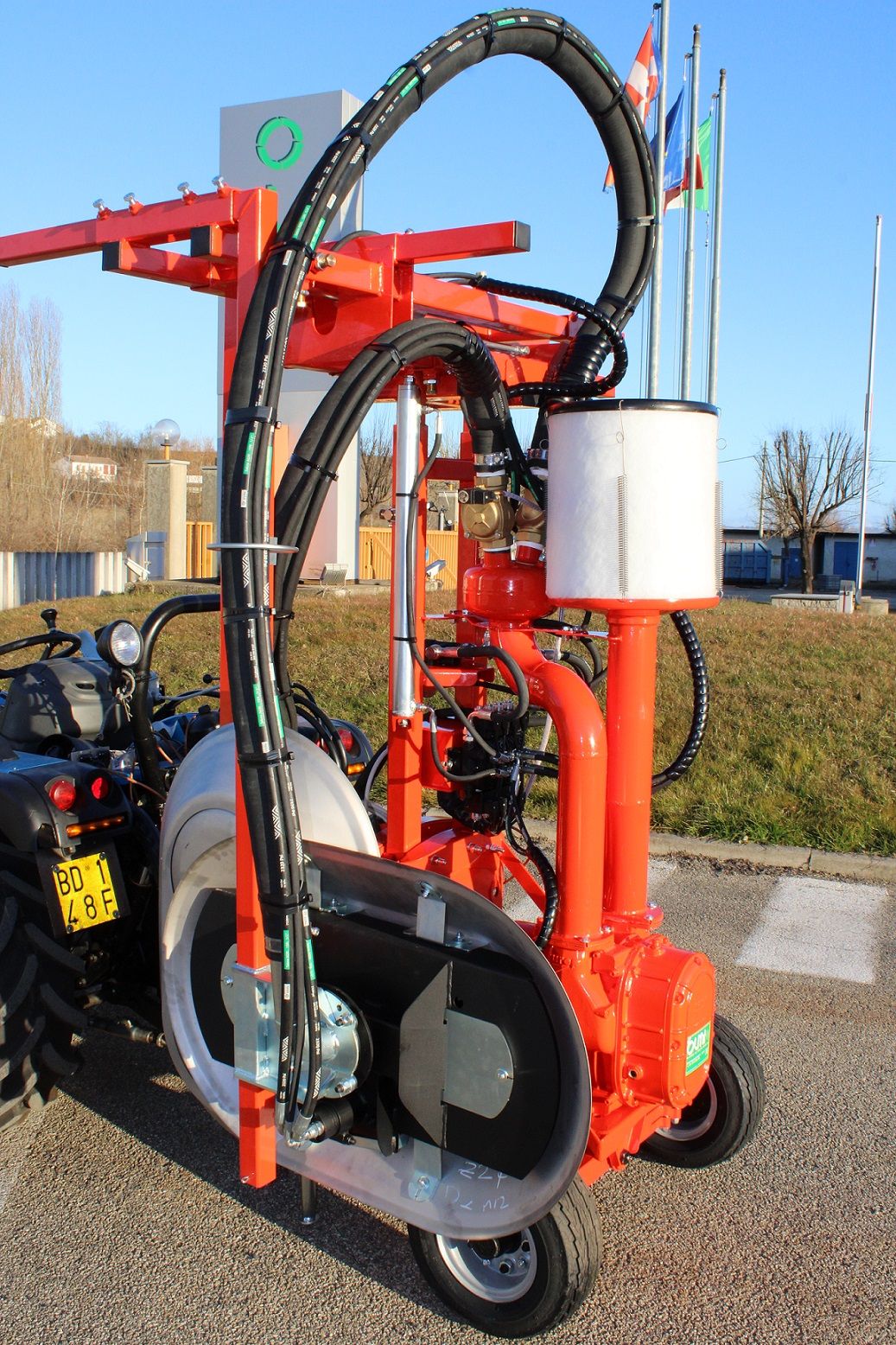

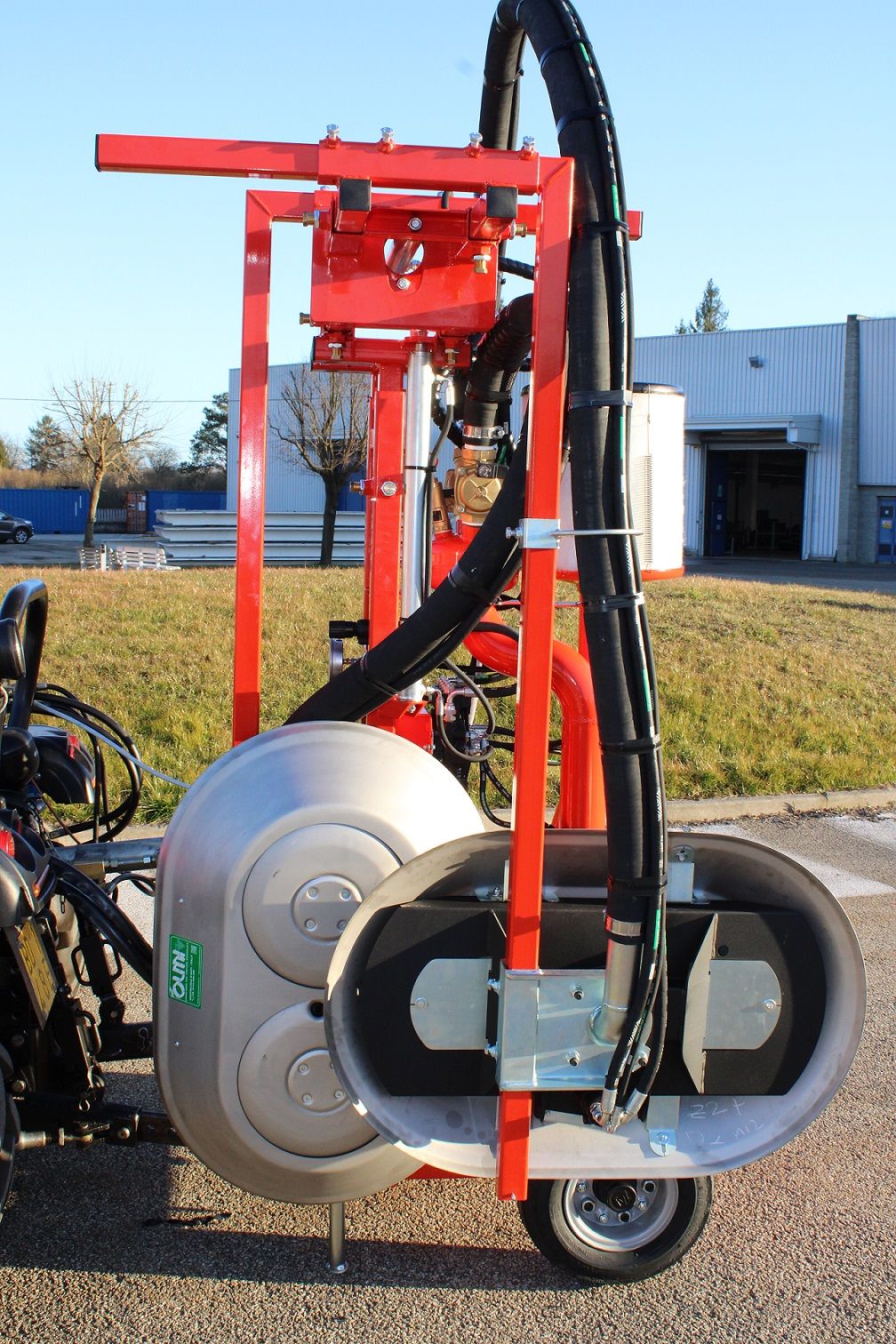

PHOTO GALLERY
JOB DONE
